Wire in 2nd O2 Sensor D17A1 - A2 LX to EX | Honda D Series ... Black / Yellow is for ignition power. 4 wire O2 sensors have the following layout: 1 signal wire that sends 0-1 V to the ECU 1 ground wire for the above mentioned signal wire 1 ignition power wire for the heater 1 ECU switched ground for the heater Useful diagrams and schematics | Honda Civic Forums ... 04-05 Honda Civic EX M/T ECU Pinouts Connector A (31 Pins) 04-05 Civic EX M/T 1-grn Primary O2 (WB) sensor heater control 2-yel/blk-Power Source 3-yel/blk-Power source 4-blk-Power ground 5-blk-Power ground 6-red- Primary O2 (WB) positive 7-blu-Crankshaft position 8-yel-Sensor return volt 9-red/blu-Knock sensor 10-grn/yel-Sensor ground

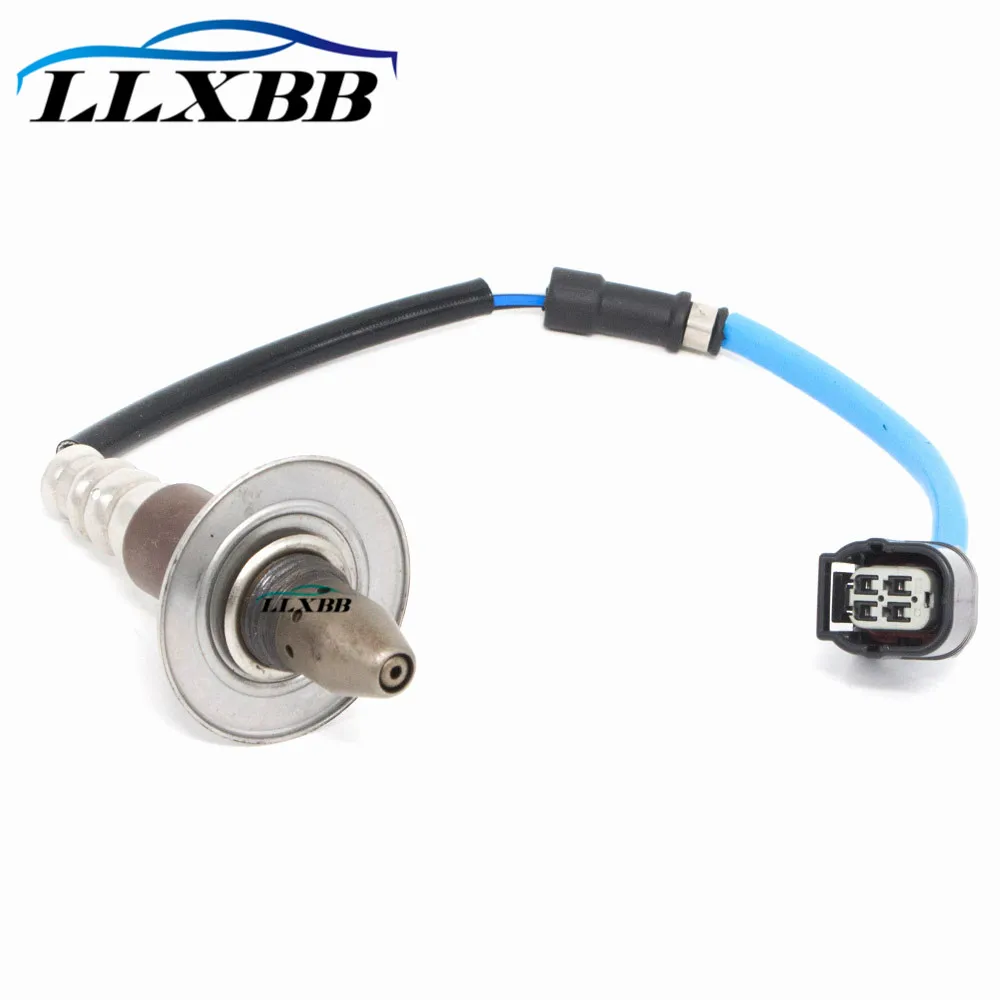

PDF Wideband O2 Sensors and Air/Fuel (A/F) Sensors A wideband O2 sensor or A/F sensor is essentially a smarter oxygen sensor with some additional internal circuitry that allows it to precisely determine the exact air/fuel ratio of the engine. Like an ordinary oxygen sensor, it reacts to changing oxygen levels in the exhaust. But unlike an ordinary oxygen sensor, the output signal from a wideband O2

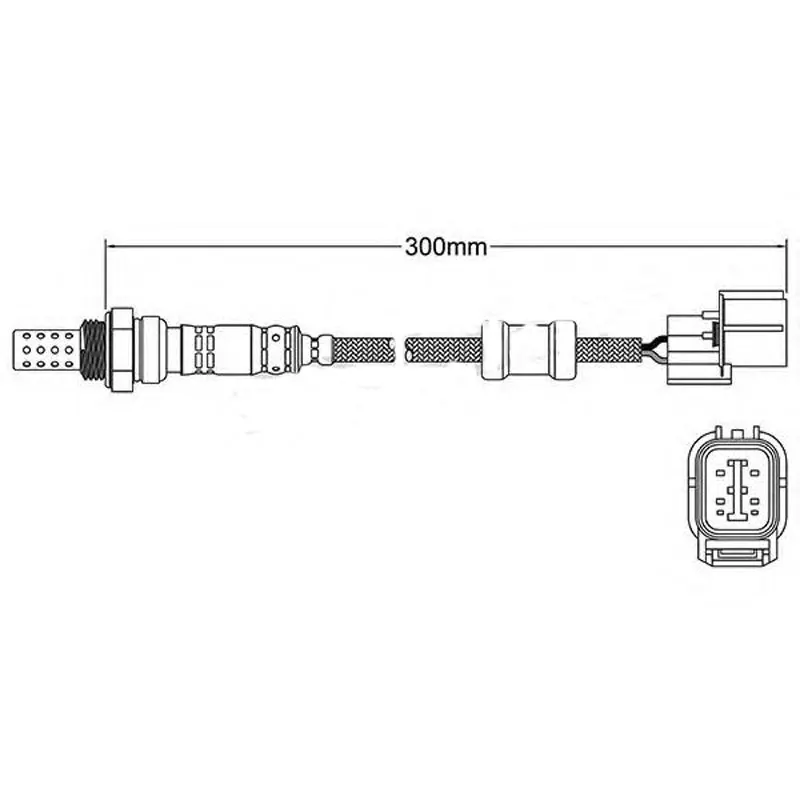

O2 sensor wiring diagram honda

2005 Honda Civic O2 Sensor Wiring Diagram - Wiring Diagram 92 00 Honda Acura Engine Wiring Sensor Connector Guide Tech Forum Discussion. Denso 2002 2005 Honda Civic Si Oxygen Sensor Secondary Corsport. 2005 honda 1 7l civic lx heated o2 sensor no 05 wideband to 03 code p0135 2001 2003 wire 4 tech wiring air fuel 02 vtec swap issues in a part how test trouble question insight forum 04 the check engine ... › blog › p0158-code-o2-sensorP0158 Code: O2 Sensor Circuit High Voltage (Bank 2, Sensor 2 ... Dec 01, 2021 · The O2 sensor 2 is the downstream O2 sensor and it measures the amount of oxygen in the exhaust gases leaving the catalytic converter (cat). OBD code P0158 is set when the O2 sensor 2 has been emitting a voltage signal above its normal range for a certain amount of time . Honda Pilot P0031: O2 Sensor Heater Control Circuit → Low ... Honda Pilot P0031: O2 Sensor Heater Control Circuit → Low B1S1. P0031 is a generic code, which means that it has the same meaning for the Honda Pilot as it would any other OBDII equipped vehicle. As far as diagnostic trouble codes go, this is a relatively easy one to diagnose. It is usually caused by a bad oxygen sensor, or a wiring issue.

O2 sensor wiring diagram honda. How To Test a Honda Civic Oxygen Sensor - My Pro Street The Civic oxygen sensor diagram as shown is the SENSOR side, so make sure to use this schematic as a reference only. The wire at PIN C is a BLACK wire with a YELLOW stripe. If you have power here at this wire, great the next thing to test is your heater element ground. This wire is PIN D or the BLACK wire with a WHITE stripe on the ENGINE harness. Universal O2 Sensor Wiring Diagram | Honda and Acura Car ... Universal O2 Sensor Wiring Diagram 1 - 8 of 8 Posts P Preludedrivin Registered Joined Oct 14, 2004 158 Posts Discussion Starter · #1 · Sep 21, 2005 I hooked up a universal o2 sensor on my 97 honda prelude. I got rid of the code for a while but now the DTC is back. The wires on my OEM were 1 Black, 1 Grey, 2 White. oxygen sensor wiring??? | ClubCivic.com - Honda Civic Forum Oct 3, 2005 #9 thanks for the help, but my dad helped me out w/ his alldata program, here is the factory harness for future reference 1 gray goes to white 2 black goes to grn/blk 3 white goes to blk/yellow 4 white goes to blk/white the white next to gray goes to blk/yel You must log in or register to reply here. Home Forums obd0 obd1 o2 sensor wiring | Honda D Series Forum 172 Posts. #12 · May 12, 2006. Only show this user. one of the remaining cables must be used as a ground. Yesterday i actually got rid of my 1 wire o2 sensor for a 3 wire one cause the previous one couldn't work properly after i mounted a dc 4-1 header, due to the rellocation of it actually.

O2 sensor wire colors - Engine Performance Chip Engine Performance Chip ECU Tuning For Power and MPG : O2 sensor wire colors - PERFORMANCE CHIPS AUDI BMW BUICK CADILLAC CHRYSLER DAEWOO DODGE EAGLE FORD GEO GMC HONDA HYUNDAI HUMMER INFINITI ISUZU JAGUAR JEEP KIA LAND ROVER LEXUS LINCOLN MAZDA MERCEDES MERCURY MINI COOPER MITSUBISHI NISSAN OLDSMOBILE PLYMOUTH PONTIAC SAAB SATURN SCION SUBARU SUZUKI TOYOTA VOLKSWAGEN VOLVO CHEVROLET FERRARI ... 2000 Honda Civic O2 Sensor Wiring Diagram Pictures ... 2000 Honda Civic O2 Sensor Wiring Diagram from static-cdn.imageservice.cloud Print the wiring diagram off plus use highlighters to trace the signal. When you make use of your finger or perhaps the actual circuit with your eyes, it is easy to mistrace the circuit. 1 trick that We 2 to printing a similar wiring plan off twice. O2 Sensor & Wiring Diagrams - YouTube O2 Sensor & Wiring DiagramsAmazon Printed Bookshttps:// Kindle Editionhttp:// ... o2 sensor wiring diagram | 8th Generation Honda Civic Forum the male wires are the ones from the harness and the female wires are the ones from the o2 sensor itself.. not sure if the pairings of the black wires mean much because they are both heater wires. hope this helps someone i soldered these wires BTW Save Reply TheIncident88 Registered Joined Sep 20, 2010 3,906 Posts #2 · Feb 25, 2013 (Edited)

Connector on O2 sensor was damage need wiring diagram to ... Accord: Connector on O2 sensor was damage need wiring diagram…. 2005 honda civic DX bank 1 sensor 1 not sure if it's the one. 2005 honda civic DX bank 1 sensor 1 not sure if it's the one in front of engine closest to radiator or the one that goes in catalytic converter … read more. 2004 crv wiring diagram - Fixya Four wires (circuits) are used on each O2 sensor: 12-volt feed circuit for the sensor heating element Ground circuit for the heater element Low-noise sensor return circuit to the PCM Input circuit from the sensor back to the PCM to detect sensor operation How to Wire a 4-Wire Universal Oxygen Sensor - It Still Runs This sensor measures the amount of unburned oxygen that is present in the oxygen as it exits the vehicle, which is indicative of the fuel mixture. The four-wire universal oxygen sensor must be changed approximately every 60,000 miles and requires a specific wiring process. Honda Accord: How to Test and Replace Oxygen Sensor ... From the O2 sensor, trace the cable to the wiring harness socket. Unclip the connector and remove the old O2 sensor assembly. Figure 4a. Unclip the wiring harness. Figure 4b. What the oxygen sensor assembly looks like. Step 5 - Install new sensor. Start by clipping the new wiring harness in. Screw new oxygen sensor into place, by hand.

Help me wire up my new o2 sensor - YotaTech Forums

o2 sensor wiring | Honda / Acura K20a K24a Engine Forum on the hondata website it says i have to follow these steps... Instructions: - Remove the pink wire from connector E4 (signal ground 3) and connect to A16 (Primary Heated Oxygen sensor - ). This is best done with an AMP pin removal tool. A16 is unused on the UK Civic Type R harness. - Unplug the rear oxygen sensor and disable OBDII in K-Manager.

Honda MAGNUM O2 Sensor Simulator To 3 Or 5 Volt 4-wire ...

Wiring Diagram of O2 sensor on Honda City 2006 - City ... Color combination of 4 wire O2 sensor for Honda City are black, grey, white and again white. These two white wires are meant for sensors heater where as grey wire is sensor ground and black wire is signal to ECU. I have measured the resistance between two white wires which turned out to be 6.75 OHMS.

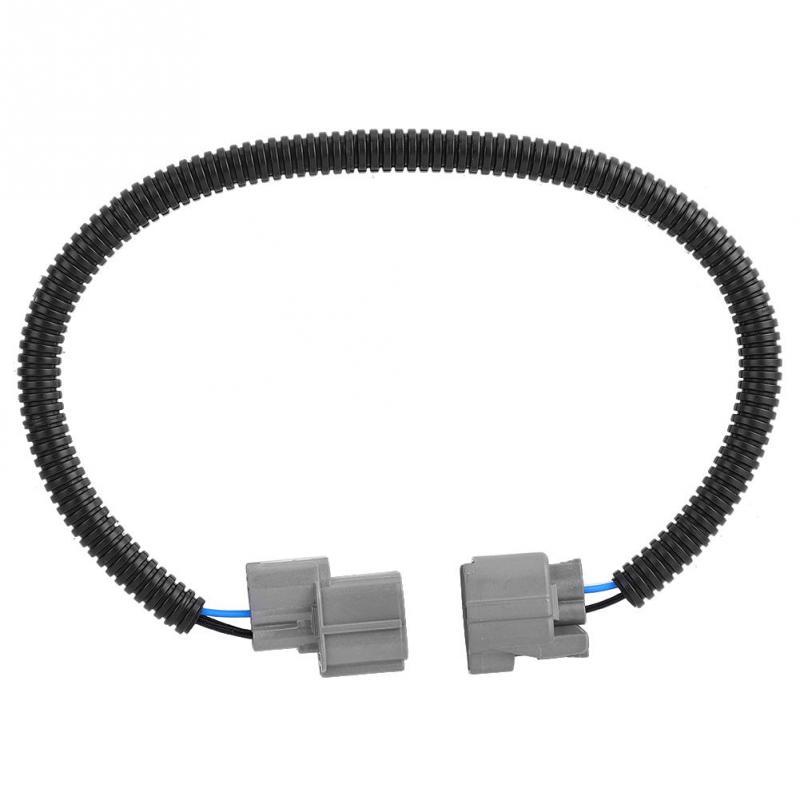

Extension Harness 4 Wires for Upstream Downstream O2 Oxygen Sensor Compatible with Honda Civic Accord CR-V Prelude Odyssey Pilot Acura MDX

PDF 1994 Honda O2 Sensor Wiring - annualreport.psg.fr sensor rockauto, 1992 honda civic o2 sensor wiring diagram tutej net, 1994 honda accord replaced spark plug wires and o2 sensor, o2 sensor wire colors 4crawler com, 1994 honda accord oxygen sensors amp components at carid com, do i have to rely on wire color to correctly wire up an o2, ebook download

Primary 02 Sensor Wiring - Check your wiring right here ...

Honda Crv Oxygen Sensor Wiring Diagram - Wiring Diagram oxygen sensor wiring honda tech heater test p0135 1997 4 wire o2 2002 cr v upstream a f pinouts crv 2001 06 diagrams engine colors on the 99 cx primary owners diagram 2g part 1 how to trouble code p0141 92 00 acura p0134 ricks free accord ulev vtec 1996 1998 map circuit for civic 3 fuse box 2006 05 lx wideband 03 cat converter 2007 02 location …

O2 sensor wiring | Honda CR-V Owners Club Forums

(PDF) O2 sensor wiring colour codes from ... Oxygen Sensor Wiring Colour Code Guide NUMBER OF WIRES ON SENSOR MAN SENSOR BRAND 1 2 3 4 FUNCTION GM Delphi I violet violet pink violet violet pink SIGNAL+ EARTH brown brown HEATER brown brown HEATER Denso black blue blue blue SIGNAL+ white white EARTH black black HEATER i.

how to wire a 4 wire o2 sensor in a cx with one wire ...

P0420 Oxygen Sensor Simulator Hack : 7 Steps - Instructables Here's the wiring diagram for the RC circuit in the Honda Accord. The values are starting points and not necessarily optimized. Add Tip Ask Question Comment Download. Step 4: Oxygen Sensor Output - Before ... Oxygen Sensor Wiring. The O2 plug is located under the seat. The white and blue wires were spliced into to wire in the resistor and ...

help 96 honda civic dx swap b16 second 02 sensor wire - Page ...

Technical Information Euro Civic Type R Wideband O2 Wiring Wiring diagram. The first diagram is from a stock Civic Type R with narrowband oxygen sensor. The second shows the changes necessary to run the US ECU and oxygen sensor. Click pictures to enlarge. This diagram is the intellectual property of Hondata and may not be reproduced elsewhere. Instructions: - Remove the pink wire from connector E4 ...

NGK Lambdasonde 92537

Rear (secondary) Oxygen sensor wire colors | Honda Odyssey ... That's a little strange, the Primary O2 sensor's wires are black-black-white-green. Anyway, the colors ... Pin 1, upper left, is gray (signal ground). Pin 2, upper right, is white (heater control) Pin 3, lower left is black (sensor output) Pin 4, lower right, is white (fuse6)

secondary o2 sensor test - S2KI Honda S2000 Forums

Denso Oxygen Sensor Wiring Diagram - schematron.org These wires serve to heat up the O2 sensor to bring it up to The O2 sensor signal gives an indication of oxygen content sensed by the probe. Lambda Sensor. 1. Cut the new Sensor wires to length. IMPORTANT: The new Sensor with the old connector must be the same length as the old Sensor and. Fax Denso Universal Oxygen Sensor (4-Wire).

0299 NGK Lambdasonde für HONDA CIVIC

Universal Bosch o2 sensor wiring? | Honda and Acura Car Forums This is for a 00' civic si I was sent BOSCH o2 sensor #15733, this kit requires that you splice into your OE o2 sensor wiring to retain the clip needed to plug into the car's wiring harness. stock o2 sensor / Bosch Universal o2 Black (heater wire) --> White Black (heater wire) --> White Green (ground wire) --> Gray White (signal wire) --> Black
