Mollier diagrams are graphical representations of the thermodynamic properties of materials involving "Enthalpy" as one of the coordinates. Mollier diagrams are named after Richard Mollier (1863 - 1935), a professor at Dresden University in Germany, who pioneered the graphical display of the relationship of temperature, pressure, enthalpy, entropy and volume of steam (as well as for moist air ... Download Steam Tables With Mollier Diagrams In S I Units Books For Free in PDF, EPUB, Tuebl, and Mobi Format or Read online Full Steam Tables With Mollier Diagr

H 2 O Mollier Diagram (Pressure-Enthalpy Diagram) Based on the Scientific (IAPWS-95) Formulation Mollier Chart in Metric Units (Excel file) (342 KB. mollier_chart_metric.xls; Drawn with SteamTab using the IAPWS-95 formulation.)

Mollier diagram steam

MOLLIER DIAGRAM CALCULATOR. The Mollier Chart (also called enthalpy entropie chart, the h-s chart or called the psychrometric chart) is a chart devised by Richard Mollier in 1904 that expands the enthalpy against entropy. Such diagrams find use in design include steam turbines, refrigeration, weather forecasting and air drying systems for the ... The Mollier diagram is used only when quality is greater than 50% and for superheated steam. For any state, at least two properties should be known to determine the other unknown properties of steam at that state. Calculate online thermodynamic and transport properties of water and steam, calculator is based on IAPWS-95 and IAPWS-IF97. Includes interactive Mollier diagrams in SI and English units, and Gas Tables for properties of combustion gases.

Mollier diagram steam. Steam table and mollier diagram pdf, Basic mathematics for electricity and electronics 8th edition pdf, It was officially adopted by the second. International Steam Table conference [5] held in. London in , and is defined as 3,/ (ap- proximately 4,). Fixing the value of any two properties defines the value of all the others. Thus fixing the values of Enthalpy and Entropy is sufficient to define Temperature, Pressure and Internal Energy of the steam. The term “Mollier diagram” (named after Richard Mollier, 1863-1935) refers to any diagram that features Enthalpy on one An enthalpy-entropy chart, also known as the H-S chart or Mollier diagram, plots the total heat against entropy, describing the enthalpy of a thermodynamic system. A typical chart covers a pressure range of .01-1000 bar, and temperatures up to 800 degrees Celsius. It shows enthalpy in terms of internal energy , pressure and volume Price : 110.00 88.00 You save 20%. The objective of "Steam Tables: With Mollier Diagrams in S.I. Units" is to present the various properties of water and steam in a most concise form. This has been a useful text for the students of Mechanical Engineering for more than 30 years.

The characteristics of steam can be plotted on h-s diagram also called as Mollier diagram named after the Richard Mollier who plotted the diagram in 1904. The diagram consists a set of curves that represents different characteristics of steam. The details about curves are given below- Horizontal axis represents entropy (s). The diagram is used to engineer an air handling unit. In this example, we will show you how to calculate the following aspects of a unit using the Mollier diagram: • Cooling coil • Heater capacity • Steam humidifie We start by establishing the outside and inside conditions. This is our field of operation, which Mollier or Enthalpy-Entropy h-s diagram The Mollier diagram is a is plot of enthalpy h versus entropy steam table and mollier diagram as shown in Fig. Being the most popular educational website in India, we believe in providing quality content to our readers. Sree Chitra Thirunal College of Engineering | Established ...

NIST Technical Series Publications A convenient alternative to using the steam tables is to use a Mollier diagram. A Mollier diagram is a graphic representation of the thermodynamic properties of steam. The ordinate "h" is enthalpy and the abscissa "s" is entropy. Richard Mollier (German: [mɔˈli̯eː]; 30 November 1863, Triest - 13 March 1935, Dresden) was a German professor of Applied Physics and Mechanics in Göttingen and Dresden, a pioneer of experimental research in thermodynamics, particularly for water, steam, and moist air.. Mollier diagrams (enthalpy-entropy charts) are routinely used by engineers in the design work associated with power ... Humidifying, Adding Steam or Water. If water is added to air without any heat supply, the air condition changes adiabatic along a constant enthalpy line - h. The dry temperature of the air decreases as shown in the Mollier diagram below. If steam is added to the air, air condition changes along a constant dh/dx line as shown above.

PDF] Steam Tables (With Mollier Diagrams in S.I. Units) By ...

Jun 19, 2017 · Fixing the value of any two properties defines the value of all the others. Thus fixing the values of Enthalpy and Entropy is sufficient to define Temperature, Pressure and Internal Energy of the steam. The term “Mollier diagram” (named after Richard Mollier, 1863-1935) refers to any diagram that features Enthalpy on one of the coordinates. Commonly used Mollier diagrams are the enthalpy-entropy (or h-s) diagram (below) and the pressure-enthalpy diagram illustrated at the bottom of this ...

Printable Diagram printable-mollier-diagram-steam-2 Printable ...

Mollier enthalpy-entropy chart for steam, US units. Image credit: Emok The Mollier diagram is a tool used by engineers to predict, theoretically, the performance of systems and installations. The Mollier diagram, also called the enthalpy (h) – entropy (s) chart or h-s chart, is a graphical representation of thermodynamic properties of materials.

Technology

For reference and computational purposes, steam tables and Mollier (Enthalpy-Entropy) diagrams are included in Appendix B. Most engineers understand the role units play in definition and verification of the engineering concepts, principles, equations and analytical techniques.

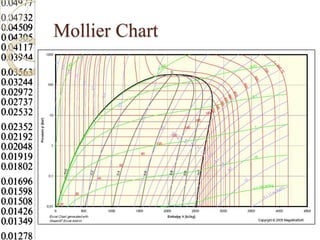

Turbine expansion process on the H-S Mollier diagram [drawn ...

Also service technician make good use of the Mollier diagram while installing or maintaining installations that cool air, heat air, steam, refrigerate, etc. Mollier work many years with his students to enhance his diagrams and works on other problems in thermodynamics,refrigeration,hydraulics and gas engines.

Explain Mollier diagram and Show different processes on ...

Table A–1E Molar mass, gas constant, and critical-point properties Table A–2E Ideal-gas specific heats of various common gases Table A–3E Properties of common liquids, solids, and foods Table A–4E Saturated water—Temperature table Table A–5E Saturated water—Pressure table Table A–6E Superheated water Table A–7E Compressed liquid water Table A–8E Saturated ice–water vapor

Literature - LogiVAP

A Mollier diagram or steam tables allow determination of the energy available in a pound of steam for a specific pressure and temperature. Figure 5.13.3 describes the Mollier diagram and the parameters involved. Sign in to download full-size image Fig 5.13.3. The Mollier Diagram Refer to Figure 5.13.4 - an enlarged Mollier Diagram.

Mollier Diagram Pro - modelling and simulation software

Mollier diagram steam . ENERGYMATTERS WWW.ENERGYMATTERS.NL STOOM . Author: Microsoft Corporation Created Date: 8/18/2014 3:34:23 PM ...

Enthalpyâ€“entropy chart - Wikiwand

This video explanes what are the different properties which can be read from Mollier Chart like Specific Enthalpy, Specific Entropy, Dryness Fraction, Pressu...

Moist Air - the Mollier Diagram

THESTEAM-TURBINEEXPANSIONLINEONTHE MOLLIERDIAGRAM.ANDASHORTMETHOD OFFINDINGTHEREHEATFACTOR ByEldgarBuckingham CONTENTS Page Introduction cyg 1.Thetotal ...

Lesson 6 PROPERTY DIAGRAMS AND STEAM TABLES - ppt video ...

On this channel you can get education and knowledge for general issues and topics

Solved Please show all work and plot answers for a, and b on ...

You will get introduced to Mollier diagram and learn how to utilize it in the assessment of enthalpy and entropy changes as temperature and pressure are changed. Understanding steam tables and navigating through them is an essential skill associated with thermodynamics. You will get an opportunity to review and learn about the various ...

Solved 1. Using the Mollier diagram, what is the final ...

Download and print Mollier Diagram for Water - Steam The Mollier diagram is useful when analyzing the performance of adiabatic steady-flow processes, such as flow in nozzles, diffusers, turbines and compressors. See also Water - Enthalpy (H) and Entropy (S) for figures and tabulated values at varying temperatures Dryness Fraction

FlexwareÂ®

Calculate online thermodynamic and transport properties of water and steam, calculator is based on IAPWS-95 and IAPWS-IF97. Includes interactive Mollier diagrams in SI and English units, and Gas Tables for properties of combustion gases.

Mollier Diagram Pro - modelling and simulation software

The Mollier diagram is used only when quality is greater than 50% and for superheated steam. For any state, at least two properties should be known to determine the other unknown properties of steam at that state.
